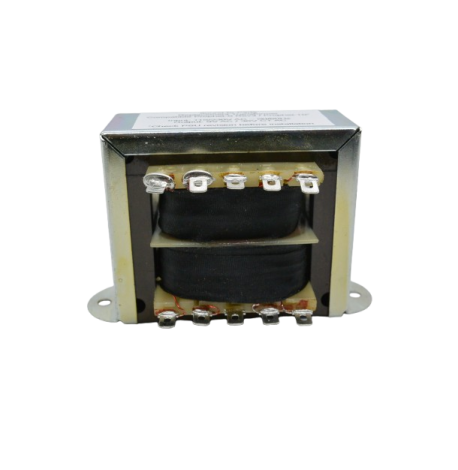

Sequential Circuits, Power Transformer – Prophet-5 Rev3 / View larger

Power Transformer – Prophet-5 Rev3 / Prophet-10

New product

Replacement power transformer for Sequential Circuits Prophet-5 Rev3 (all 3.x revisions). May also fit some Prophet-10 units, depending on PSU revision.

More details

89,00 €

Warning: Last items in stock!

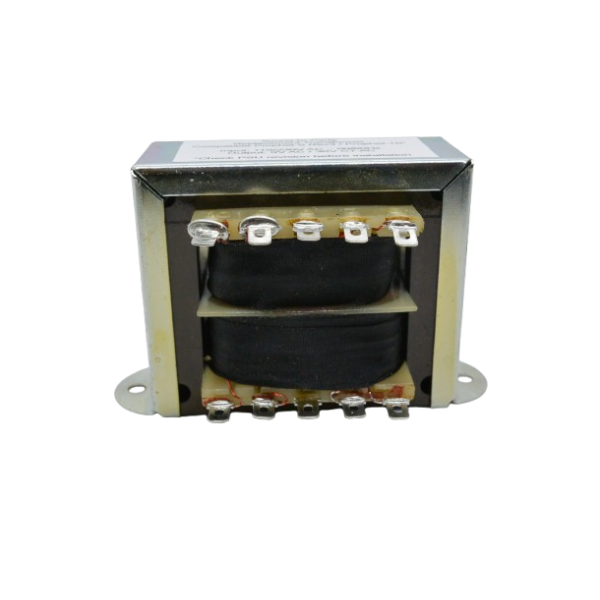

    Power transformer designed as a direct replacement for the original unit used in the Sequential Circuits Prophet-5 Rev3.

    This transformer provides the required secondary voltages for the regulated power supply board of the synthesizer:

    • 9 V AC

    • 36 V AC center-tapped (36 VCT)

    From these windings, the Prophet-5 PSU generates the necessary regulated DC rails (+5 VDC and ±15 VDC).

    Compatibility:

    • Sequential Circuits Prophet-5 Rev3 (3.0 / 3.1 / 3.2 / 3.3)

    • Sequential Circuits Prophet-10*
      (*Check PSU revision before installation)

    Notes:

    • This transformer is a direct replacement for the original part.

    • Installation requires soldering skills and knowledge of electronics.

    • Always check mains voltage before wiring (115 V or 230 V).
